Cable tray vs cable trunking is a choice that can make or cook your cables hot-dip galvanized steel 1. I have watched sealed trunking derate heavy power runs on projects our Tai’an factory supplied.
Neither is universally better. Cable tray wins for heavy power cables, large runs, and heat dissipation because it is open and ventilated. Cable trunking wins for small control, data, and signal cables that need enclosed protection from dust, water, and interference. Your cable type decides the answer.
That short answer hides some important detail. Both products belong to the same family of cable management systems, but they behave very differently once cables go inside. Let me walk you through how I help buyers decide, what each option really costs, and where each one fails.
How do I decide between cable tray and cable trunking for my project?
A project director in Singapore messaged me on WhatsApp last year. He wanted trunking for an entire solar plant. Ten minutes of questions changed his whole containment plan.
Decide based on your cables. Choose an open cable tray for thick power cables that generate heat and need ventilation. Choose enclosed cable trunking for thin control, signal, or communication cables that need protection from dust, moisture, and electromagnetic interference. Environment and access needs refine the choice.
Here is the rule I share with every buyer: the cable’s temperament decides whether you go open or closed. Temperament means two things. How much heat does the cable produce? And how much protection does it demand?
Start With What Your Cables Need
If you are laying thick, heavy power cables, do not choose trunking. A fully enclosed body traps heat. That trapped heat forces you to derate the cable’s current-carrying capacity 2, sometimes sharply. In severe cases, it accelerates insulation aging and creates a real safety risk. For these runs, I always recommend an open system, either a perforated cable tray 3 or a wire mesh tray, because airflow carries heat away.
If you are laying slim control, signal, or communication cables, trunking is an excellent choice. It gives those cables VIP-level protection against dust, water, and electromagnetic interference 4, which keeps signals stable. If the environment is dry and free of interference, an open tray also works, and it costs less.
A Quick Side-by-Side View
| Factor | Cable Tray | Cable Trunking |
|---|---|---|
| Enclosure | Open | Enclosed or semi-enclosed |
| Cable access | Very easy | Easy to moderate |
| Ventilation | Better | More restricted |
| Physical protection | Moderate | Higher |
| Appearance | More visible | Cleaner, concealed |
| Expansion | Easier | Less convenient |
| Best for | Large, changing, ventilated runs | Smaller, protected, visible runs |
One warning from my export experience: catalogs in different regions use these terms loosely. Some suppliers call enclosed channels trays, and some call open channels trunking. Ignore the naming dispute. Focus on the functional difference between open and enclosed electrical containment, and you will not go wrong.
What are the key cost differences between cable tray and cable trunking?
Steel thickness, finish, and covers drive quotes more than most buyers expect. When we price a project in our workshop, the trunking lid alone can shift the numbers noticeably.
Cable tray usually costs less per meter at scale because it uses less material and installs faster. Cable trunking costs more due to covers, couplers, and fabrication, but suits short runs. Labor, derating penalties, and future modifications often matter more than the initial material price.
Buyers often compare only the per-meter price on a quotation. That is a mistake I try to correct early, because installed cost and lifecycle cost tell a very different story.
Where the Money Actually Goes
| Cost Element | Cable Tray | Cable Trunking |
|---|---|---|
| Material per meter | Lower for the same width | Higher, body plus cover |
| Accessories | Bends, tees, splice plates | Couplers, lids, end caps, more parts |
| Installation labor | Faster at scale, cables lay in | Slower, covers open and close |
| Scalability | Cost per cable drops as volume grows | Cost stays flat or rises |
| Hidden thermal cost | Minimal | Larger cable sizes to offset derating |
That last row deserves attention. If trunking forces you to derate a power cable, you must buy a larger conductor to deliver the same current. Copper is expensive. On big industrial wiring solutions, that hidden cost can dwarf the containment price difference entirely.
Lifecycle and End-of-Life Value
Material choice also changes the long-term math. PVC trunking is cheap upfront, but it is difficult to recycle at end of life. Galvanized steel or aluminum trays hold reclamation value as scrap, which matters to EPC clients tracking sustainability targets. Load-bearing capacity plays a quiet role too. A stronger tray allows wider support spacing, which means fewer brackets, fewer anchors, and less labor on a long run. When I quote a full solar plant route, support count often moves the total more than the tray itself.
Which option offers better protection for my cables in harsh environments?
Our QC team salt-tests galvanized samples before every coastal shipment. Corrosion behaves differently on open trays and closed trunking, and that difference shapes what we recommend for harsh sites.

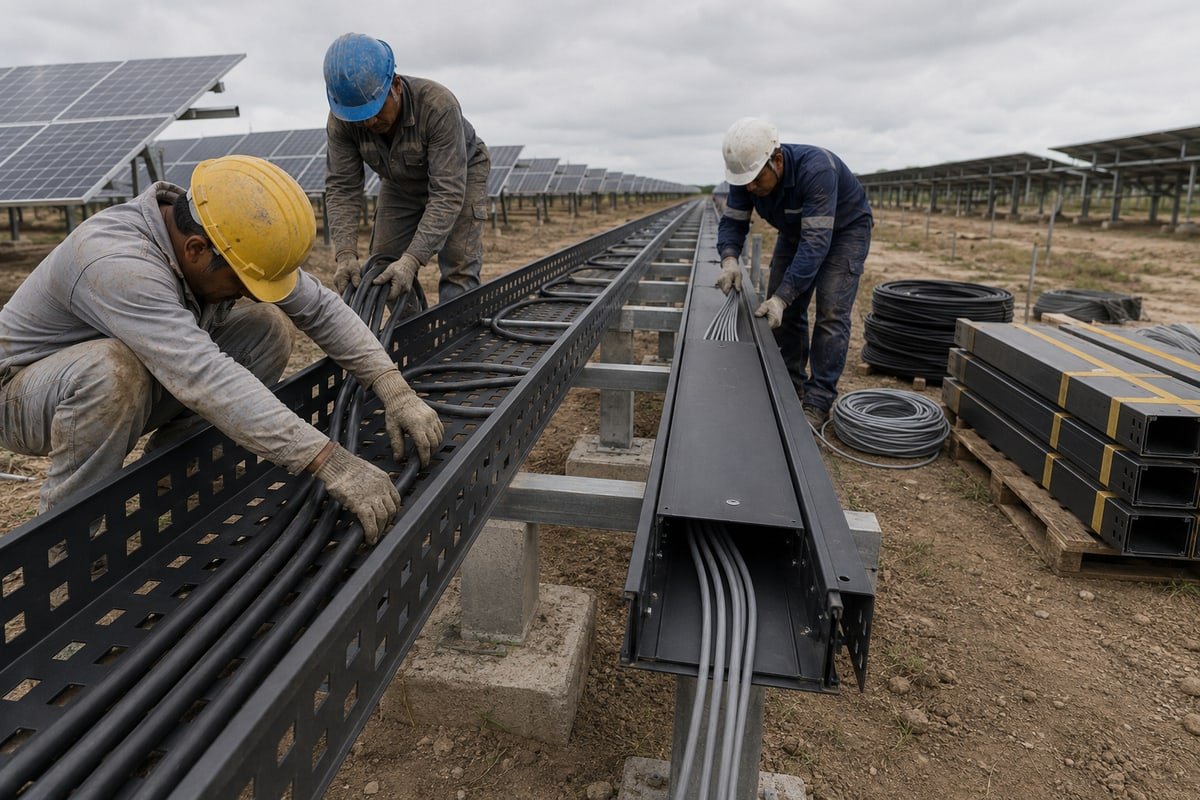

Cable trunking offers better protection in dusty, wet, or electrically noisy environments because its enclosed body blocks contaminants and shields signals. Cable tray protects better against heat stress in hot, high-load settings. For corrosive sites, hot-dip galvanized steel matters more than the containment shape.
Harsh means different things on different sites. I ask every buyer to name the actual threat before choosing a system, because each threat favors a different answer.
Match the Threat to the System
| Environmental Threat | Better Choice | Why |
|---|---|---|
| Dust and debris | Trunking | Enclosed body keeps contaminants off cables |
| Water splash and moisture | Trunking | Lid and sealed joints block ingress |
| Electromagnetic interference | Metallic trunking | Acts as a continuous shield around data lines |
| High ambient heat | Open tray | Free airflow supports heat dissipation |
| Corrosive coastal air | Either, with hot-dip galvanizing | Coating quality decides lifespan, not shape |
| Impact and accidental contact | Trunking | Covers stop tools, feet, and curious hands |
The EMI point is worth expanding. Metallic trunking surrounds sensitive data cables like a continuous Faraday cage, shielding them from electromagnetic and radio frequency interference. An open tray cannot match that without specialized covers. This is why trunking earns its place in laboratories and signal-heavy control rooms.
But there is one harsh scenario where trunking backfires: fire. A vertical trunking run can behave like a chimney, channeling smoke and flame between floors. Modern designs increasingly place open trays in vertical shafts and seal penetrations with intumescent fire pillows to preserve compartmentalization. Whatever you select, verify it against the fire rating standards that apply in your project’s jurisdiction, because requirements vary by country.
How do I choose based on installation and maintenance needs?
Early in our export business, a contractor changed his route three times mid-build. He removed every trunking cover twice. That job taught me to ask about future changes first.
Choose cable tray when you expect frequent additions, inspections, or route changes, because open access makes maintenance fast. Choose cable trunking for stable, fixed routes mounted on walls or ceilings. Trays need trapeze hangers and supports; trunking mounts directly but slows every later modification.
Installation method is the first practical difference crews notice. Trays typically hang from trapeze hangers, cantilever brackets, or threaded rod systems, especially on long ceiling spans. That support design takes engineering, and load-bearing capacity must be checked against the total cable weight. Trunking usually screws directly onto a wall or ceiling, which is simpler for short, contained routes.
Maintenance is where the gap widens. Here is how a typical cable addition plays out on each system:
- On an open tray, the electrician lifts the new cable in, lays it along the route, and secures it. Nothing gets dismantled.
- On trunking, the electrician removes covers along the entire path, feeds the cable through, checks the fill limit, and refits every lid.
For offices, data-heavy buildings, and any project expected to expand, that difference compounds over years. Open systems also welcome new technology. IoT load and temperature sensors integrate far more easily into open trays, letting facility managers watch for hot spots in high-density data centers in real time.
My honest recommendation is often a hybrid. Use tray or cable ladder for the heavy backbone runs, then switch to trunking for the visible final drops where a clean finish matters. Most of the EPC projects we supply from Tai’an combine both, and the results balance access, protection, and appearance.
Conclusion
The cable’s temperament decides the winner. Open tray suits hot, heavy power runs; enclosed trunking suits delicate signals. Match containment to cables, and your project avoids expensive surprises.
