Cable trunking is an essential component in modern electrical and data installations. It provides a safe, organized, and visually neat way to route and protect electrical cables within buildings or industrial facilities. Unlike open-type cable trays, cable trunking systems are enclosed, which helps to protect cables from dust, moisture, and physical damage while maintaining a clean appearance.
This article explains in detail what cable trunking is, its structure, key features, typical applications, and major advantages. By understanding how cable trunking works, engineers, contractors, and facility owners can select the best system for their electrical and communication installations.
1. Definition of Cable Trunking
Cable trunking is an enclosed rectangular or square conduit system used to route and protect electrical, data, and communication cables. It consists of a base channel and a removable cover, forming a closed box-like structure that completely encases the cables inside.
The main purpose of trunking is to conceal, protect, and organize cables in environments where aesthetics, safety, and cable management efficiency are critical. Cable trunking can be made from various materials, including steel, PVC, aluminum, or stainless steel, depending on the installation environment and load requirements.
2. Structure and Design Features

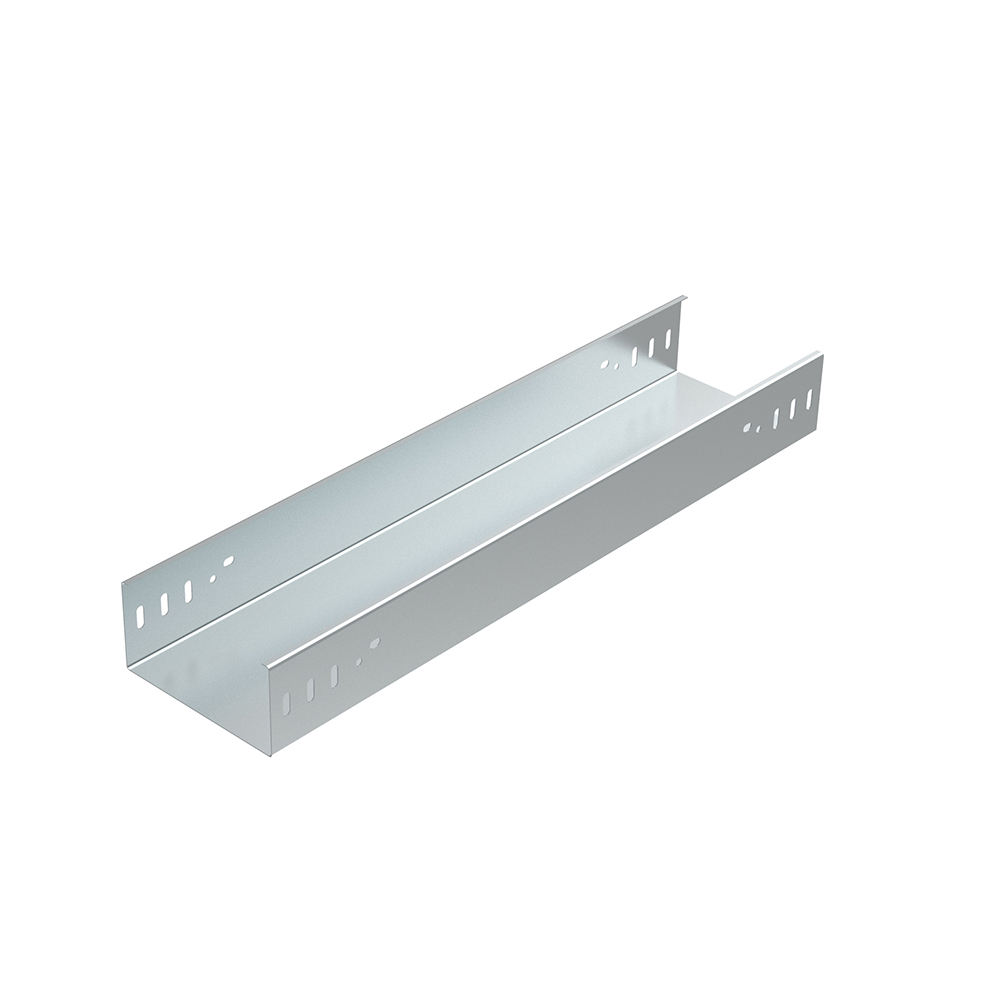

2.1 Construction and Components
A typical cable trunking system consists of:
- Base Channel: The main body that holds and supports the cables.
- Cover: A removable lid that encloses the trunking to protect cables from dust, moisture, and accidental contact.
- Fittings and Accessories: Including bends, tees, reducers, couplers, and end caps for flexible installation layouts.
The trunking’s modular design allows it to be easily extended or reconfigured, making it ideal for both new installations and upgrades.
2.2 Material Types
- Steel Trunking: Strong and durable, suitable for industrial or commercial settings with high mechanical stress.
- PVC Trunking: Lightweight, corrosion-resistant, and ideal for residential or office environments.
- Aluminum Trunking: Provides a balance between strength and corrosion resistance, often used in commercial buildings.
- Stainless Steel Trunking: Best for corrosive or hygienic environments such as food processing and marine industries.
2.3 Sizes and Dimensions
Cable trunking is available in a variety of sizes ranging from 25mm x 25mm (small control wiring) to 300mm x 150mm (heavy-duty power distribution). The size is selected based on the total cable volume and bending requirements.
2.4 Surface Finish
- Hot-Dip Galvanized Steel: Excellent corrosion protection for outdoor or industrial environments.
- Powder-Coated Finish: Offers a clean appearance for offices or interior spaces.
- PVC Smooth Finish: Provides electrical insulation and ease of cleaning.
3. Key Features and Characteristics
3.1 Fully Enclosed Protection
Unlike open cable trays, trunking systems completely enclose the cables, protecting them from dust, debris, moisture, mechanical impact, and UV exposure. This is especially beneficial in indoor or clean environments.
3.2 Organized Cable Management
Cable trunking allows cables to be neatly arranged and separated, preventing tangling and improving identification during maintenance. This makes the system particularly suitable for data centers, control rooms, and office buildings.
3.3 Easy Access and Maintenance
The removable cover provides easy access to the cables for inspection, repair, or modification without disturbing surrounding installations.
3.4 Aesthetic Appearance
Trunking systems are widely used in offices, retail spaces, and public areas due to their clean, professional look. The cables are completely hidden, maintaining a neat and organized appearance.
3.5 Fire and Safety Compliance
Metallic trunking systems can provide fire containment and help delay the spread of flames, while PVC trunking can be manufactured with flame-retardant compounds to meet safety regulations.
3.6 Modularity and Flexibility
Cable trunking systems include a variety of fittings such as elbows, tees, reducers, and junction boxes, which make them adaptable to complex building layouts. They can also be combined with other cable management systems like trays and conduits.
4. Common Applications of Cable Trunking
4.1 Commercial Buildings
In offices, shopping centers, and hospitals, cable trunking conceals power and data wiring, ensuring safety and visual appeal. It can be installed along walls, ceilings, or under floors for flexible routing.
4.2 Industrial Facilities
In factories, warehouses, and workshops, steel trunking is used to protect power cables and control circuits from dust, vibration, and physical damage. The enclosed structure minimizes downtime and simplifies maintenance.
4.3 Data Centers and IT Infrastructure
Cable trunking is a preferred solution for structured cabling in IT environments. It separates power and data cables, reducing electromagnetic interference (EMI) and maintaining system performance.
4.4 Residential and Public Buildings
In homes, schools, and offices, PVC cable trunking is used for lighting, data, and communication wiring. It ensures safety and a clean aesthetic without requiring cable embedding in walls.
4.5 Healthcare and Cleanroom Environments
In hospitals, laboratories, and cleanrooms, stainless steel trunking is preferred for its hygienic properties and resistance to corrosion and cleaning agents.
5. Advantages of Cable Trunking Systems
5.1 Enhanced Cable Protection
Trunking systems safeguard cables from external damage, contamination, and environmental factors, extending cable lifespan and improving operational reliability.
5.2 Neat and Professional Appearance
All cables are enclosed, providing a tidy and organized finish suitable for public and commercial areas.
5.3 Safety and Fire Resistance
Metal trunking systems help contain sparks or flames in case of electrical faults, contributing to building fire safety.
5.4 Flexibility and Expansion
The modular nature of trunking allows easy system expansion or modification during future upgrades, making it a long-term, cost-effective choice.
5.5 Easy Installation and Maintenance
Trunking can be easily installed with simple tools and adjusted during service without complex dismantling, reducing labor and downtime costs.
5.6 Compatibility with Other Systems
Cable trunking integrates well with conduits, cable trays, and wire mesh systems, providing a comprehensive cable management solution.
6. Installation Considerations
6.1 Routing and Planning
Plan trunking routes to avoid obstacles and minimize sharp bends. Ensure adequate space for future cable additions and proper separation between power and data circuits.
6.2 Support and Fixing
Trunking should be securely fixed to walls, ceilings, or support brackets using appropriate anchors. Support spacing typically ranges from 1.2 to 1.5 meters depending on size and weight.
6.3 Earthing and Bonding
For metal trunking systems, ensure proper electrical bonding and grounding to maintain safety and compliance with standards like IEC 61537 and BS EN 50085.
6.4 Separation and Fire Barriers
In installations where power and communication cables coexist, use internal dividers to reduce interference. In fire-rated installations, ensure trunking and accessories meet flame-spread and insulation standards.
7. Cable Trunking vs Other Cable Management Systems
| Type | Structure | Ventilation | Protection Level | Common Use |
|---|---|---|---|---|
| Cable Trunking | Fully enclosed box with cover | Low | High | Offices, Industrial Plants |
| Cable Ladder | Two rails with rungs | Excellent | Medium | Industrial and Power Plants |
| Perforated Tray | Flat base with ventilation holes | Good | Medium | Commercial Buildings |
| Wire Mesh Tray | Grid-like wire frame | Excellent | Low | Data Centers, Offices |
8. Conclusion
Cable trunking provides a reliable, organized, and aesthetically pleasing way to route and protect cables in commercial, industrial, and residential environments. Its fully enclosed structure ensures superior protection against dust, moisture, and physical damage, while the modular design offers flexibility and scalability.
Whether in factories, data centers, or offices, cable trunking contributes to safer, cleaner, and more efficient electrical installations. Choosing the right material, size, and installation method ensures long-term performance and compliance with international standards.
In summary, cable trunking is an excellent solution for projects that demand safety, durability, and professional appearance in cable management systems.
