A Cable Ladder is one of the most common and durable cable support systems used in modern electrical installations. It provides a reliable pathway for safely routing and supporting electrical power cables, control wires, and communication cables. With its open and strong design, the cable ladder offers excellent ventilation, load capacity, and flexibility for industrial and commercial environments.
1. Definition of Cable Ladder

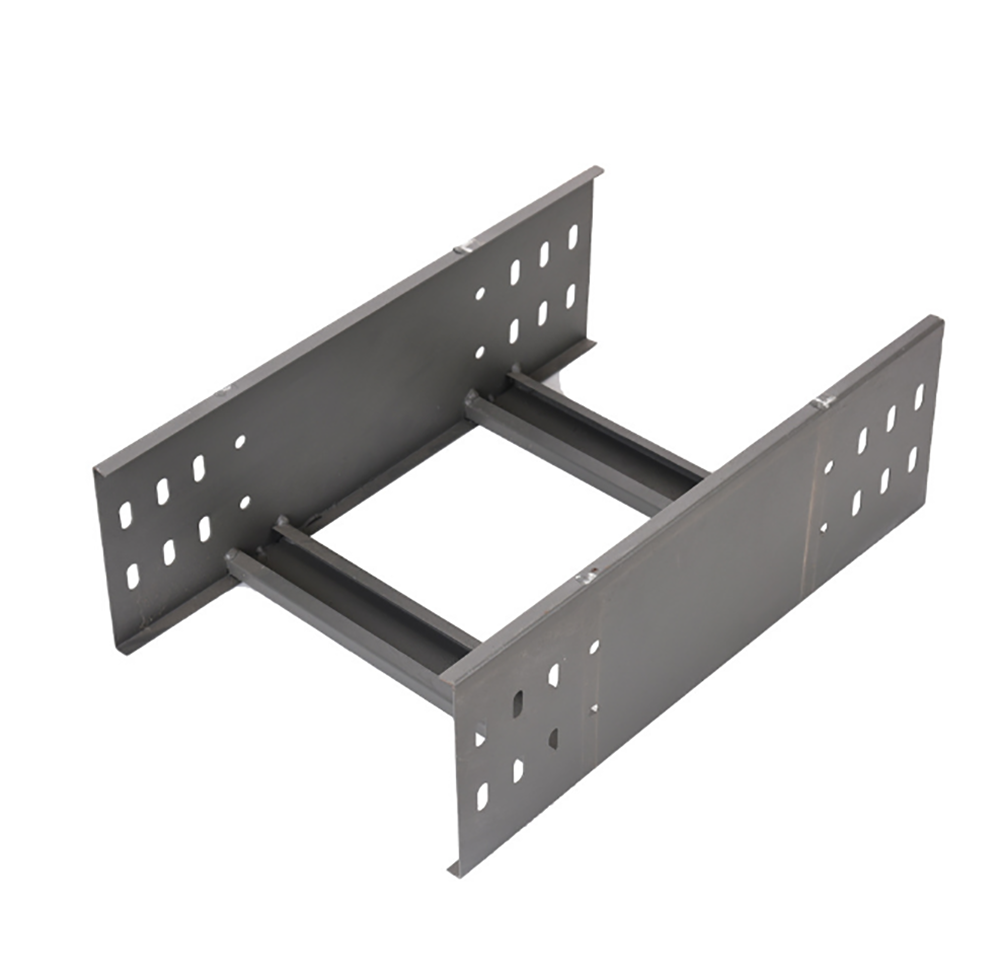

A Cable Ladder—also known as a Ladder Type Cable Tray—is a cable management system made of two parallel side rails connected by a series of rungs, forming a ladder-like structure. The rungs provide mechanical support to the cables, while the open design allows easy cable installation, maintenance, and heat dissipation.
Typically made of hot-dip galvanized steel, stainless steel, or aluminum, the cable ladder is designed to support heavy-duty power and control cables across long distances. It is widely used in industrial plants, power stations, refineries, tunnels, and offshore platforms.
2. Structural Features of Cable Ladder
2.1 Design and Construction
The cable ladder consists of two side rails connected by evenly spaced rungs (usually 200–300 mm apart). This simple but strong construction provides both mechanical strength and open ventilation for cables. The rungs are welded or bolted to the rails, depending on the design, and can carry multiple layers of heavy cables.
2.2 Material Options
- Hot-Dip Galvanized Steel: Offers strong corrosion resistance and mechanical durability for outdoor and industrial applications.
- Stainless Steel (SS304 or SS316L): Ideal for environments exposed to moisture, salt, or chemicals, such as marine and petrochemical industries.
- Aluminum: Lightweight, corrosion-resistant, and easy to handle; suitable for indoor and light industrial environments.
- FRP (Fiber Reinforced Plastic): Non-metallic, corrosion-proof, and ideal for chemical plants and offshore use.
2.3 Finishes and Coatings
- Hot-Dip Galvanized Finish: Provides a long-lasting protective zinc layer for outdoor exposure.
- Powder-Coated Finish: Adds color and additional surface protection.
- Mill Finish Aluminum: Commonly used in indoor installations where corrosion is minimal.
2.4 Size and Load Rating
Cable ladders are available in widths from 150 mm to 900 mm (6–36 inches) and standard lengths of 2.5 to 3 meters per section. Depending on span and material thickness, they are classified as light-duty, medium-duty, or heavy-duty types. Heavy-duty ladders can support large bundles of cables with long support spans up to 3 meters or more.
3. Key Features and Characteristics
3.1 Open Structure Design
The open-rung design allows excellent airflow and ventilation, preventing heat buildup from high-current cables. It also enables easy access for maintenance, modification, and cable replacement.
3.2 High Mechanical Strength
Cable ladders provide exceptional load-bearing capacity and structural stability, making them ideal for long horizontal or vertical runs in industrial settings. The rigid side rails and strong rungs resist vibration and bending even under heavy cable loads.
3.3 Corrosion Resistance
Depending on the selected material and coating, cable ladders offer high resistance to corrosion, ensuring long service life even in challenging environments such as marine, offshore, or chemical plants.
3.4 Flexibility and Modularity
Cable ladders are designed with a complete range of fittings and accessories—including bends, tees, reducers, and elbows—that allow easy adaptation to complex routing layouts. This modularity makes installation quick and flexible.
4. Typical Applications of Cable Ladder
4.1 Industrial Plants
Cable ladders are extensively used in manufacturing facilities, refineries, and process plants where large bundles of power and control cables need reliable support. Their strength and openness make them ideal for high-capacity installations.
4.2 Power Generation and Transmission
In power stations, substations, and renewable energy plants, cable ladders carry heavy power cables between transformers, switchgear, and control panels. They help reduce heat accumulation and facilitate inspection.
4.3 Oil, Gas, and Petrochemical Industries
These environments require stainless steel or FRP cable ladders to resist corrosion from chemicals, humidity, and salt. Ladder trays provide safe and durable support for control and instrumentation cables.
4.4 Infrastructure and Utility Tunnels
Cable ladders are commonly installed in tunnels, bridges, airports, and metro systems for power and communication cabling. Their open design simplifies installation and ensures reliable cable management over long distances.
4.5 Marine and Offshore Installations
For ships, ports, and offshore oil platforms, marine-grade stainless steel cable ladders are essential for withstanding extreme conditions such as salt spray and vibration.
5. Advantages of Cable Ladder Systems
5.1 Excellent Heat Dissipation
The open rung structure promotes natural ventilation, allowing heat from cables to escape easily. This helps maintain cable performance and extends lifespan, especially in high-current systems.
5.2 Easy Installation and Maintenance
Technicians can lay, replace, or reroute cables quickly without removing covers or dismantling sections. This reduces labor costs and downtime during maintenance or upgrades.
5.3 Strong Load Capacity
With high structural rigidity, cable ladders can handle heavy cable loads across long spans. They are the preferred solution for industrial power distribution systems.
5.4 Corrosion and Weather Resistance
Hot-dip galvanized and stainless steel ladders perform well in outdoor or coastal environments, ensuring long-term reliability and minimal maintenance requirements.
5.5 Flexible Routing
The modular fittings—such as bends, tees, and reducers—allow installers to easily adapt the system to complex layouts and multi-level structures.
5.6 Cost-Effective Solution
While offering strength and durability, cable ladders are also economical due to their long service life, low maintenance costs, and quick installation process.
6. Installation Considerations
6.1 Support Spacing
Cable ladders must be supported at regular intervals (typically every 1.5 to 3 meters) depending on load and span. Proper spacing prevents deflection and ensures safety.
6.2 Grounding and Bonding
For electrical safety, all metallic cable ladders should be properly grounded and bonded according to standards such as IEC 61537 or NEMA VE-1.
6.3 Corrosion Protection
When used in outdoor or corrosive environments, choose appropriate coatings or materials (e.g., hot-dip galvanized or stainless steel) to extend product life.
6.4 Compliance with Standards
Cable ladders should comply with international standards such as IEC 61537, BS EN 61537, and NEMA VE-1 to ensure quality, safety, and load performance.
7. Comparison: Cable Ladder vs Other Tray Types
| Tray Type | Structure | Load Capacity | Ventilation | Typical Application |
|---|---|---|---|---|
| Cable Ladder | Two rails with rungs | Heavy | Excellent | Industrial, Power Plants |
| Perforated Tray | Flat base with holes | Medium | Good | Commercial Buildings |
| Wire Mesh Tray | Wire grid | Light | Excellent | Data Centers, Offices |
| Cable Trunking | Fully enclosed box | Medium | Poor | Indoor Decorative Installations |
8. Conclusion
The Cable Ladder is a robust, efficient, and cost-effective solution for cable management in both industrial and commercial settings. Its open structure ensures excellent ventilation and accessibility, while its strength supports heavy cable loads over long spans.
From factories and power stations to marine and offshore facilities, the cable ladder provides a long-lasting foundation for safe and organized electrical cable routing. By selecting the right material, finish, and load rating, engineers can build a cable management system that offers reliability, safety, and performance for decades.
In short, if your project demands strength, durability, and flexibility in cable support, a well-designed cable ladder system is the ideal choice.
