Buyers ask our Tai’an factory about the difference between cable ladder and cable tray almost weekly NEMA standards 1. Specify wrong, and cables overheat, budgets bleed, projects stall. Let me clear it up.
A cable ladder has two side rails joined by rungs, giving high load-bearing capacity, long support spans, and excellent heat dissipation for heavy power cables. A cable tray has a solid or perforated base, offering better cable protection and neater routing for lighter signal and control cables.
Both products belong to the same family of cable management systems. But they solve different problems. Below, I break down structure, applications, cost, and a decision framework for your project.
How do cable ladders and cable trays differ in structural design and load capacity?
Last month I watched our QC team load-test a ladder run before a Philippines shipment. The deflection gauge barely moved. That test tells the whole structural story.
Cable ladders use two longitudinal side rails connected by transverse rungs, creating an open frame that carries heavy loads over long spans. Cable trays use a continuous solid, perforated, or wire mesh base, which carries lighter loads over shorter spans but supports cables along their full length.
The structural difference sounds small on paper. In practice, it changes everything about how each system performs on site.
Two Side Rails and Rungs vs a Continuous Base

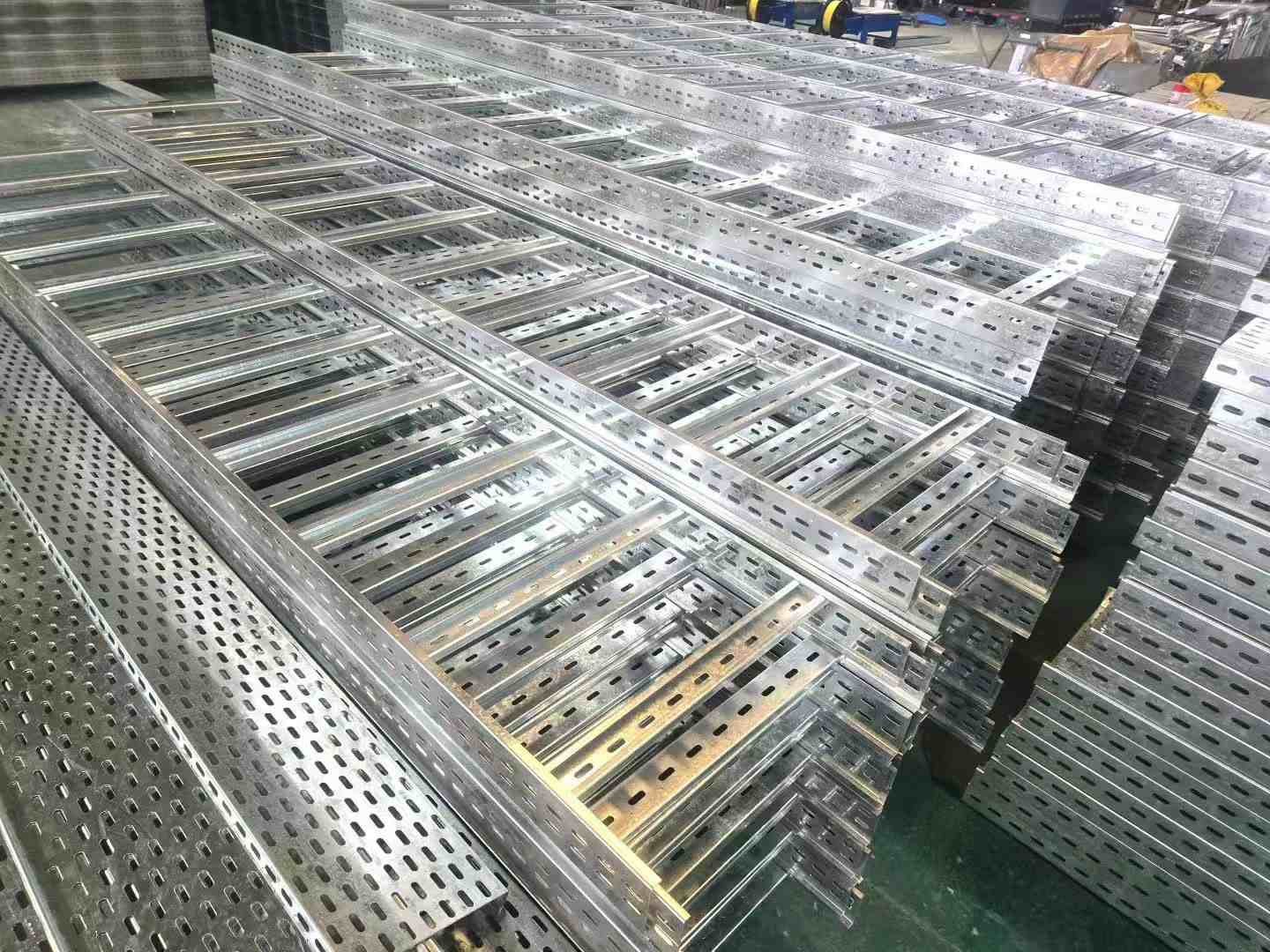

A cable ladder looks exactly like its name suggests. Two strong side rails run the length of the route. Rungs connect them at regular intervals. Cables rest on the rungs, and the underside stays fully open. This open design allows near 100% air circulation around the cables. Heat escapes freely, so large power cables 2 can often run at full rated current without derating. It also means cables can enter or exit at any point along the run, with no field-cutting needed.

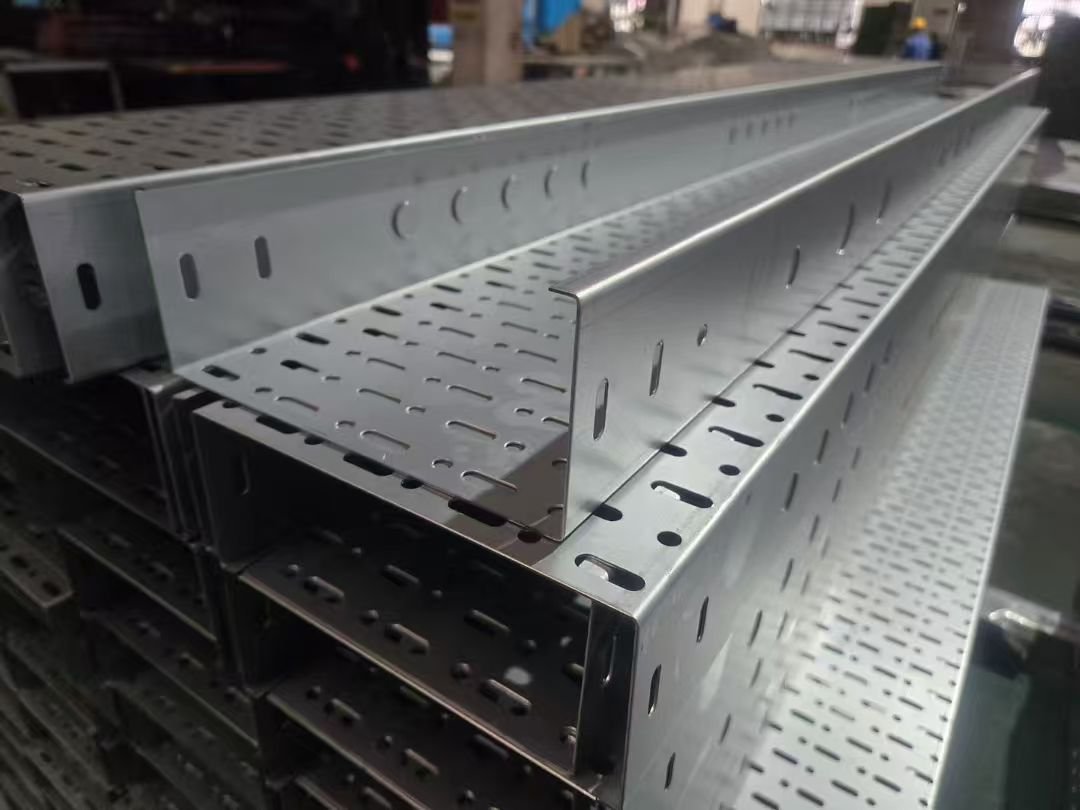

A cable tray is a channel with a bottom. That bottom can be solid, perforated, or slotted. On our production line, the perforated tray 3 is our most requested version, because the punched holes recover some airflow while still cradling the cables. But even a perforated tray restricts ventilation compared with an open ladder, and a solid-bottom tray may force engineers to derate cables.
Load-Bearing Capacity and Support Span
Here is a side-by-side view. Treat the numbers as illustrative and always confirm against the manufacturer’s load charts.
| Factor | Cable Ladder | Cable Tray |
|---|---|---|
| Structure | Two side rails with rungs | Continuous solid, perforated, or wire mesh base |
| Typical load-bearing capacity | Often 500+ kg/m in heavy-duty designs | Roughly 100–300 kg/m depending on type |
| Typical support span | 3–6 m for steel; up to 12 m for some aluminum designs | Usually 3 m or less |
| Airflow and heat dissipation | Excellent, open on all sides | Moderate; solid bottoms trap heat |
| Cable entry and exit | Any point along the run | Often needs fittings or field cuts |
The span figure matters most for large plants. Fewer supports means fewer anchor points, less structural steel, and faster installation along long corridors.
Which applications are better suited for cable ladders versus cable trays?
A project director in Singapore messaged me on WhatsApp last quarter, asking why his consultant specified ladders outdoors but trays inside the control room. The answer sits in application logic.
Cable ladders suit heavy power distribution: substation power corridors, outdoor cable trenches, power plants, and long industrial runs where load and heat dominate. Cable trays suit control rooms, machine rooms, data centers, and commercial buildings where signal cables need protection, EMI shielding, and tidy routing.
My simple rule after years of supplying both: big cables, heavy loads, and heat mean ladder; signal cables, protection needs, and indoor routing mean tray. Here is how that plays out across real projects.
| Application | Better Choice | Why |
|---|---|---|
| Substation and switchgear power corridors | Cable ladder | Heavy cables, high heat, long spans |
| Outdoor cable trenches | Cable ladder | Open rungs shed dust, moisture, and debris |
| Solar farms and water treatment plants | Cable ladder | Long outdoor runs, hot-dip galvanized steel resists corrosion |

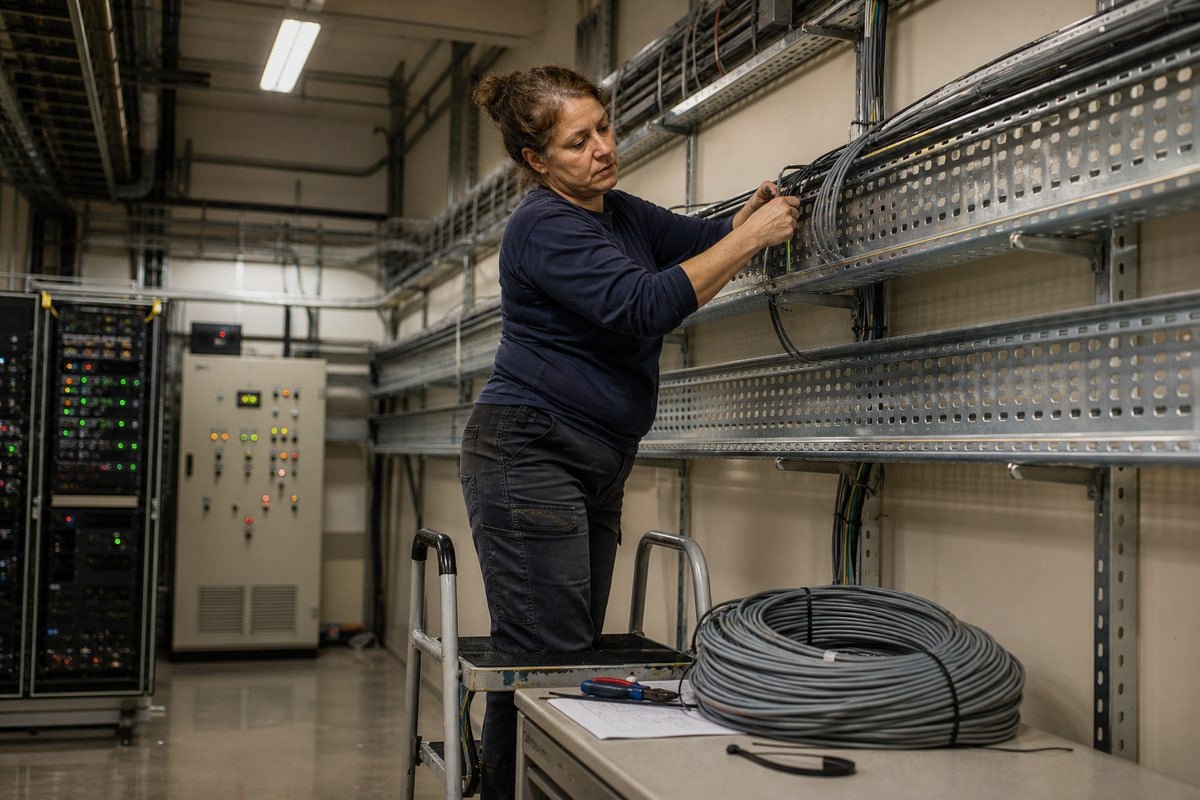

| Control rooms and instrumentation | Cable tray | Cable protection and organized routing |
| Data centers and telecom rooms | Cable tray | Neat appearance, easy segmentation |
| Commercial buildings and offices | Cable tray | Aesthetics matter on visible runs |
Where Cable Ladders Win
Ladders dominate industrial electrical installations. Their open structure prevents the accumulation of dust and standing water, so maintenance stays simple in dirty environments. Inspection is fast because every cable is visible. Adding a circuit later takes minutes.
Where Cable Trays Win
Trays shine where cables are small and sensitive. A solid-bottom tray provides a level of EMI and RFI protection 4 for signal cables that an open ladder simply cannot offer. That matters for data, telecommunications, and low-voltage control wiring near power equipment.
The Vertical Riser Question
One nuance many buyers miss: in vertical riser shafts, an open ladder can create a chimney effect during a fire, pulling flames upward. A solid-bottom tray accepts fire-stop barriers more effectively and can slow flame spread. We flag this whenever a client sends us riser drawings.
How does the cost compare between cable ladders and cable trays for my project budget?
Every quotation I prepare weighs two numbers against each other: steel per meter and supports per hundred meters. The real cost comparison hides in that balance.
Cable ladders often carry a higher unit price but need fewer supports, because spans reach three to six meters, which cuts installation labor. Cable trays cost less per meter for light runs but need supports roughly every three meters, raising total installed cost on long, heavy routes.
Purchase price per meter is only the opening move. When I help EPC procurement managers build a budget, I push them to compare total installed cost instead.
Upfront Price vs Installed Cost
A perforated tray uses a full sheet of galvanized steel folded into a channel. A ladder uses two rails plus spaced rungs. Interestingly, a ladder often consumes less raw material per linear meter than a comparable solid tray. That lowers its embodied carbon footprint too, which is starting to appear in tender requirements for large infrastructure work. But ladders demand robust supports and careful alignment on long runs, so fabrication and hardware quality matter more.
Hidden Costs Most Budgets Miss
| Cost Factor | Cable Ladder | Cable Tray |
|---|---|---|
| Material per linear meter | Less steel or aluminum than a solid tray | More sheet metal, especially solid-bottom |
| Support hardware | Fewer supports thanks to longer support span | Supports typically every 3 m or less |
| Installation labor | Fewer fixing points on long runs | More anchor points; faster for short indoor runs |
| Cable derating | Rarely needed, thanks to airflow | Solid bottoms may force larger, costlier cables |
| Maintenance | Easy open access, low cleaning cost | More confined; debris can collect inside |
The derating line deserves attention. If a solid tray traps heat, the engineer may upsize the cables. Copper is expensive. I have seen that single line item erase every saving the cheaper tray promised. Our mid-range pricing helps here, but honest system selection helps more.
How do I decide whether to choose a cable ladder or cable tray for my EPC project?
One lesson from years of OEM work with EPC contractors: labels on drawings matter less than engineering specs. I have seen the same hybrid product sold under three different names.
Choose a cable ladder when cables are heavy, spans exceed three meters, or heat dissipation is critical. Choose a cable tray when cables are light, EMI shielding or appearance matters, or indoor routing needs containment. Always verify load class and span data against NEMA standards, not product labels.
The boundary between the two systems blurs at the edges. Manufacturers offer perforated trays, ladder-style trays, and wire mesh tray systems that mix features from both. Terminology also shifts by region. So I tell every buyer the same thing: run the checklist first, then read the datasheet.
A Seven-Point Decision Checklist
- Cable weight and size. Large power cables above medium voltage almost always point to a ladder.
- Support span. If your structure only allows supports every four to six meters, a tray cannot bridge the gap. A ladder can.
- Indoor or outdoor. Outdoor trenches favor open ladders in hot-dip galvanized steel. Indoor finished spaces favor trays.
- Heat generation. High-current circuits need the free airflow only an open ladder provides.
- EMI control. Sensitive instrumentation near power equipment benefits from a solid-bottom tray’s shielding.
- Visual requirements. Exposed runs in commercial ceilings look cleaner in a tray.
- Maintenance frequency. Frequent cable additions favor the ladder’s open access at any point.
Don’t Trust the Label Alone
Ask your supplier for the tested load-bearing capacity at your actual support span, the material and coating thickness, and the applicable NEMA load class. One more forward-looking point: the discrete rungs of a ladder make excellent attachment points for distributed temperature sensors, so plants monitoring cable health in real time increasingly lean toward ladders. When our team develops custom profiles with EPC clients, we lock these specs into the drawing before production starts. It prevents QC disputes and returns later, which is exactly the pain most project directors want to avoid.
Conclusion
Cable ladders carry heavy, hot, long runs; cable trays protect and organize lighter ones. Send me your cable schedule, and our team will help you specify the right system.
