Extreme corrosion resistance ensures long-lasting outdoor support.
Versatile slot design allows for fast flexible installation.
High tensile strength handles heavy mechanical load requirements.
Maintenance free finish saves significant long-term operational costs.
In modern construction and industrial engineering, contractors need cable support and mechanical support systems that offer long service life, strong structural stability, and maximum resistance to corrosion. Whether the project involves MEP installation, cable containment, HVAC support frames, solar panel mounting, or electrical infrastructure, reliability and durability directly affect the overall performance of the system.
This is why more engineering buyers, EPC contractors, and global distributors choose the Hot Dipped Galvanized (HDG) Unistrut Channel.
The HDG coating significantly improves corrosion resistance, making it ideal for outdoor environments, coastal regions, chemical plants, wastewater treatment facilities, utility tunnels, and any location where humidity, salt spray, or harsh weather conditions are present.
Compared with pre-galvanized or painted channels, HDG Unistrut Channel provides at least 3–5 times longer protection, ensuring a stable support structure even under extreme conditions. Its high strength, modular design, and universal compatibility with strut fittings make it one of the most widely used framing systems in the world.

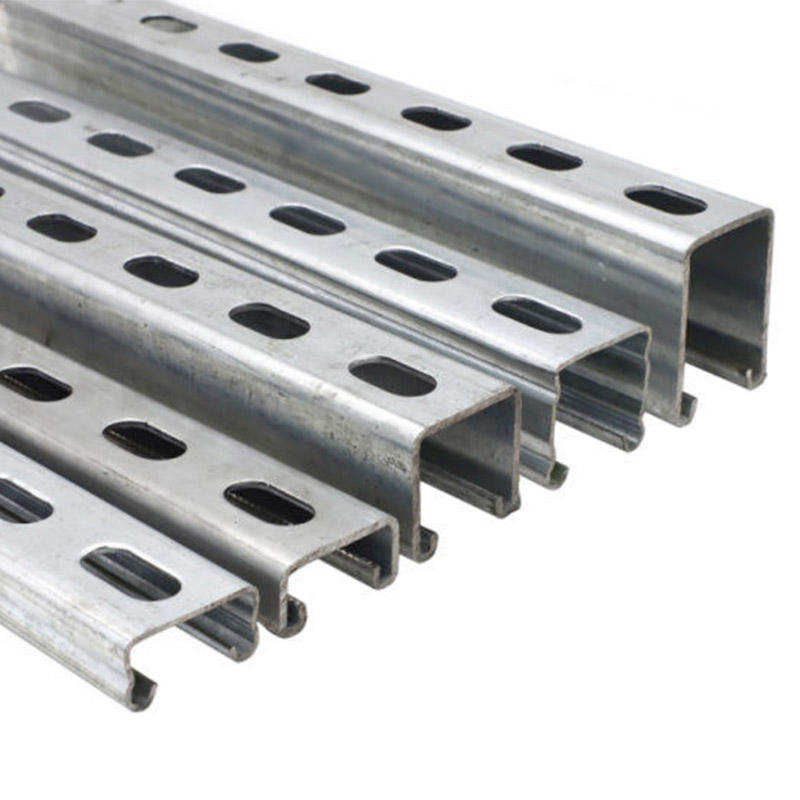

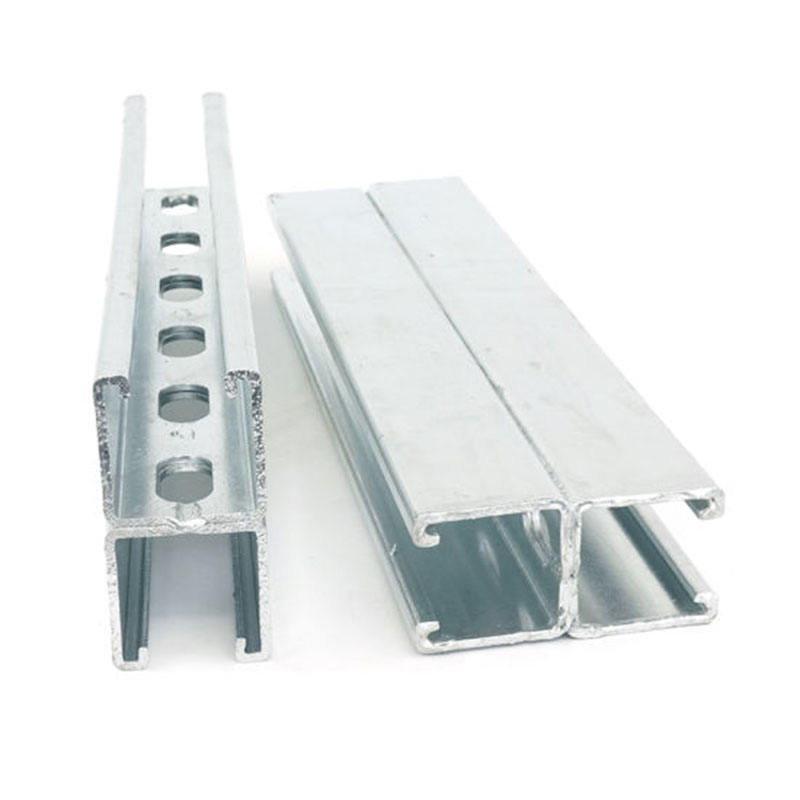

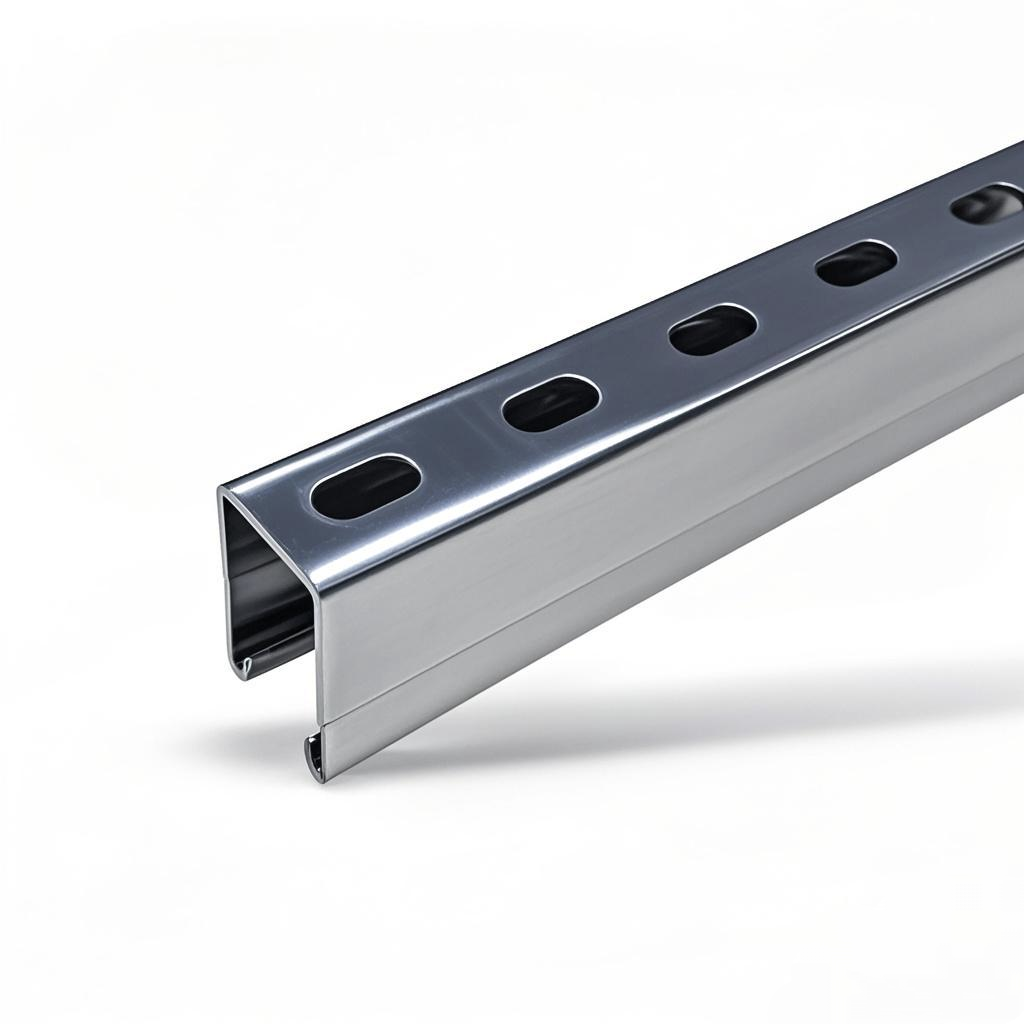

A Hot Dipped Galvanized Unistrut Channel is a structural support channel manufactured from cold-formed steel and fully coated with a hot-dip galvanized zinc layer. The entire channel—including internal edges, cut areas, and weld points—is submerged in molten zinc at 450°C. As a result, the zinc coating fully bonds with the steel surface, forming a metallurgical protective layer.
This layer is much thicker and stronger than pre-galvanized coatings. It provides excellent resistance against rust, moisture, chemicals, and environmental corrosion.
The HDG Unistrut Channel is commonly used to support:
Its modular “strut system” design allows fast assembly using compatible brackets, clamps, nuts, and bolts, without welding. This makes installation faster, easier, and more adaptable to last-minute site changes.
| Parameter | Specification |
|---|---|
| Product Name | Hot Dipped Galvanized Unistrut Channel |
| Material | Mild Steel / Carbon Steel |
| Surface Finish | Hot Dipped Galvanized (HDG) |
| Galvanizing Standard | ASTM A123 / ISO 1461 |
| Zinc Coating Thickness | 80–120 μm (up to 200 μm available) |
| Channel Size | 41×21 mm / 41×41 mm / 41×62 mm / 41×82 mm |
| Thickness | 1.5 mm – 3.0 mm |
| Length | 3000 mm / 6000 mm Size Can be customized. |
| Type | Slotted / Solid (Plain) |
| Hole Pattern | Standard Slot / Round Hole / Custom |
| Load Capacity | Medium to Heavy Duty |
| Installation Type | Wall / Ceiling / Floor / Support Framing |
| Accessories | Spring nuts, bolts, brackets, clamps, fittings |
| Application | Cable Support Systems, Pipe Support, Mechanical & Electrical Installations |
| Standard | BS EN 10346 / IEC 61537 |
The HDG Unistrut Channel offers a wide range of engineering advantages, making it one of the most reliable support systems in the global MEP and construction industry.
3.1 Superior Corrosion Resistance
Hot-dip galvanizing provides a zinc coating that is 5–10 times thicker than pre-galvanized steel.This coating protects the channel from:
Even in heavy industrial environments, the HDG coating maintains structural integrity for many years. This greatly reduces maintenance and replacement costs.
3.2 Long Service Life
Because the zinc layer can resist corrosion for decades, HDG Unistrut Channels are ideal for long-term installations. The metal remains protected even when cut or scratched, because zinc offers “self-healing” properties through galvanic action.
3.3 High Structural Strength
Cold-formed steel provides high load-bearing capacity. The channel is strong enough to support heavy electrical conduits, cable trays, solar equipment, and industrial machinery frameworks.
3.4 Fully Compatible Modular System
The Unistrut system is designed to be universal.
With a single channel profile, you can build:
3.5 No Welding Required
All structures can be assembled using bolts and nuts.
This reduces:
3.6 Excellent for Outdoor and Industrial Use
HDG Unistrut performs well in challenging environments such as:
The zinc coating prevents corrosion even in constant exposure to moisture or chemicals.
3.7. Easy to Install, Modify, and Expand
Contractors can cut, drill, or adjust the channel on-site.
If the design changes, the modular system makes it easy to add or remove components quickly.
3.8. Clean and Professional Appearance
The HDG finish provides a uniform, metallic appearance that looks high-quality and durable—ideal for commercial and industrial environments.
3.9. Cost-Effective for Large Projects
Compared with stainless steel, HDG channels offer similar corrosion resistance at only a fraction of the cost.
This makes them ideal for large-scale MEP and industrial projects where budgets matter.
HDG Unistrut Channels have wide applications across construction, industrial, and mechanical engineering.
4.1 MEP Installations
4.2 HVAC Systems
4.3 Solar Energy Systems
4.4 Telecommunication Projects
4.5 Data center installations
Server room support structures
4.6 Industrial & Manufacturing
4.7 Construction & Infrastructure
Q1: What is the difference between HDG and pre-galvanized Unistrut?
HDG offers a much thicker zinc layer and far superior corrosion resistance, especially in outdoor and industrial environments.
Q2: Can HDG Unistrut Channel be used outdoors?
Yes. HDG is specifically recommended for outdoor, coastal, and humid environments.
Q3: What length options are available?
Standard lengths include 3 m and 6 m. Custom lengths can be produced.
Q4: Do you provide fittings and accessories?

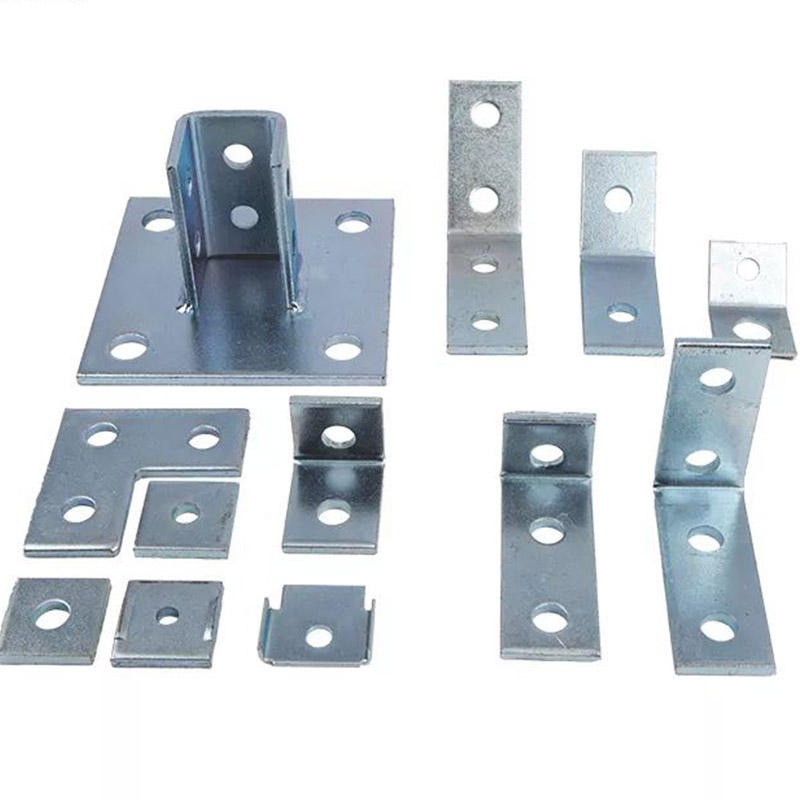

Yes. All compatible Unistrut fittings, nuts, brackets, and clamps are available.
Q5: Can the channel be customized?
Yes. Size, thickness, slot pattern, and packaging can be customized.
Q6: What is the typical zinc coating thickness?
Between 55–120 µm depending on project requirements.
Q7: Does HDG Unistrut Channel meet international standards?
Yes. It meets ISO 1461, ASTM A123/A153, and EN 1461 standards.
Q8: Is HDG Unistrut suitable for heavy loads?
Yes. It provides strong structural performance for medium-to-heavy-duty industrial applications.
