Complete Guide to Cable Ladder, Cable Trunking, Perforated, Wire Mesh, and Marine Cable Trays
Cable trays play a vital role in modern electrical and communication systems. They serve as a reliable framework to support, protect, and organize cables, ensuring the safe and efficient transmission of power and data. Whether in industrial plants, commercial complexes, or offshore facilities, choosing the right cable tray is essential for safety, durability, and cost efficiency.
In this comprehensive guide, we will explore the five most common types of cable trays—Cable Ladder, Cable Trunking, Perforated Cable Tray, Wire Mesh Cable Tray, and Marine Cable Tray—covering their definitions, key features, applications, and advantages.

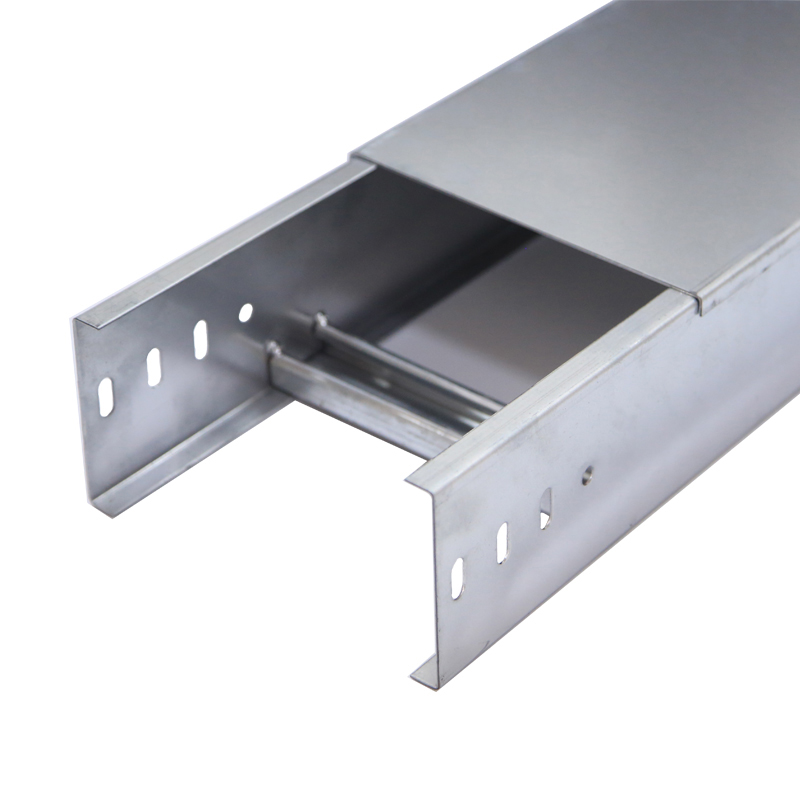

1. Cable Ladder Tray
Definition
A Cable Ladder Tray (also called Ladder Type Cable Tray) is designed with two longitudinal side rails connected by rungs at uniform intervals, resembling a ladder. It is one of the strongest and most widely used tray systems for heavy-duty cable installations.
Features
- Constructed from hot-dip galvanized steel, stainless steel, or aluminum for superior corrosion resistance.
- Rung spacing typically ranges between 200–300 mm, suitable for supporting heavy power and control cables.
- The open structure ensures excellent ventilation and heat dissipation, reducing the risk of cable overheating.
- Compatible with multiple fittings and accessories such as bends, tees, reducers, and vertical elbows.
Applications
- Industrial plants and power stations using large-diameter power cables.
- Oil & gas facilities and manufacturing plants that demand robust mechanical support.
- Utility tunnels and outdoor installations where airflow and load strength are critical.
Advantages
- Outstanding load-bearing capacity, ideal for heavy-duty applications.
- Easy cable inspection and maintenance due to the open ladder design.
- Promotes natural heat dissipation, extending cable lifespan.
- Galvanized finish offers long-term corrosion protection in harsh environments.

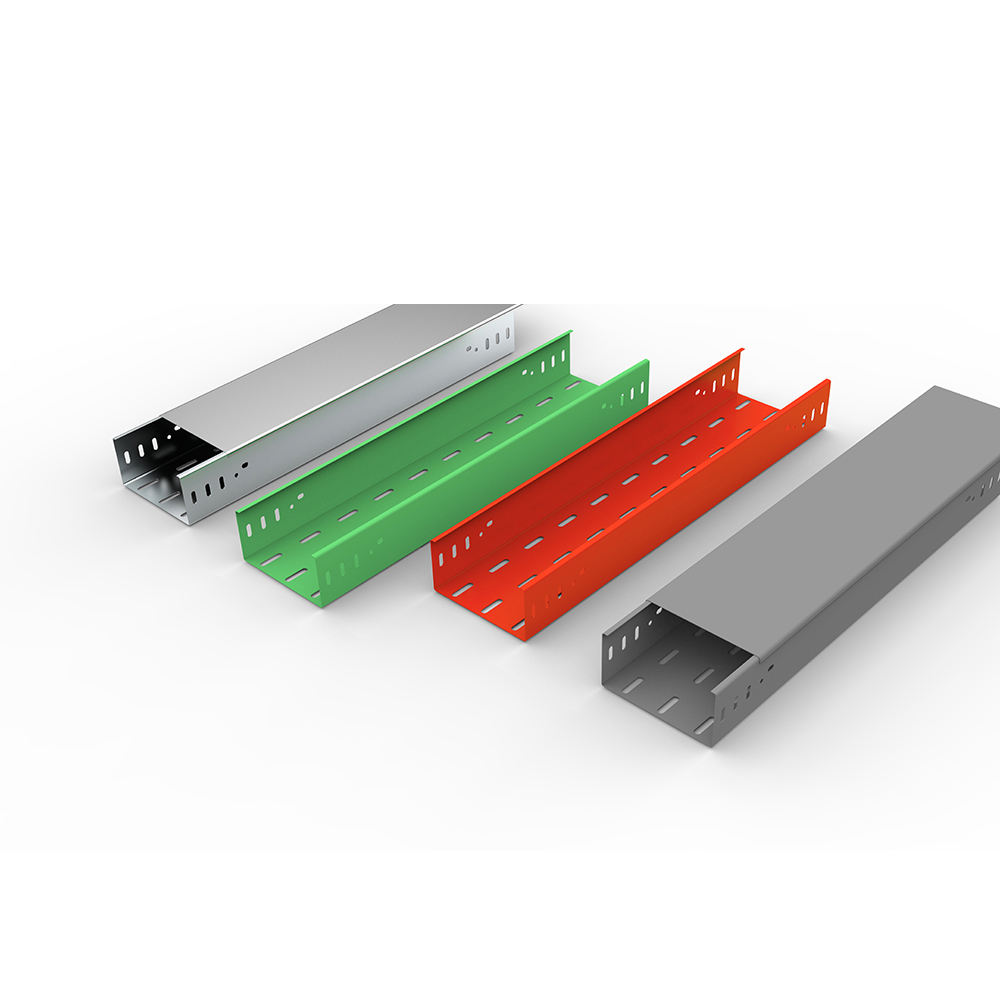

2. Cable Trunking
Definition
Cable Trunking (also known as Cable Duct or Cable Channel) is a fully enclosed rectangular system that protects and routes electrical cables neatly. It provides a clean and organized appearance while ensuring high levels of safety.
Features
- Made from mild steel, aluminum, or PVC, selected based on the installation environment.
- Enclosed structure shields cables from dust, moisture, and mechanical impact.
- Includes removable lids or covers for easy cable access and maintenance.
- Available in multiple sizes and finishes, suitable for industrial and architectural settings.
Applications
- Commercial buildings, offices, and data centers where appearance and safety are important.
- Electrical control panels and instrumentation systems requiring organized routing.
- Hospitals and public facilities, minimizing contamination and electromagnetic interference.
Advantages
- Maximum cable protection from environmental and physical hazards.
- Provides a professional aesthetic, ideal for visible installations.
- Enables cable segregation (e.g., separating data and power circuits).
- Metal versions offer electromagnetic shielding, improving system reliability.

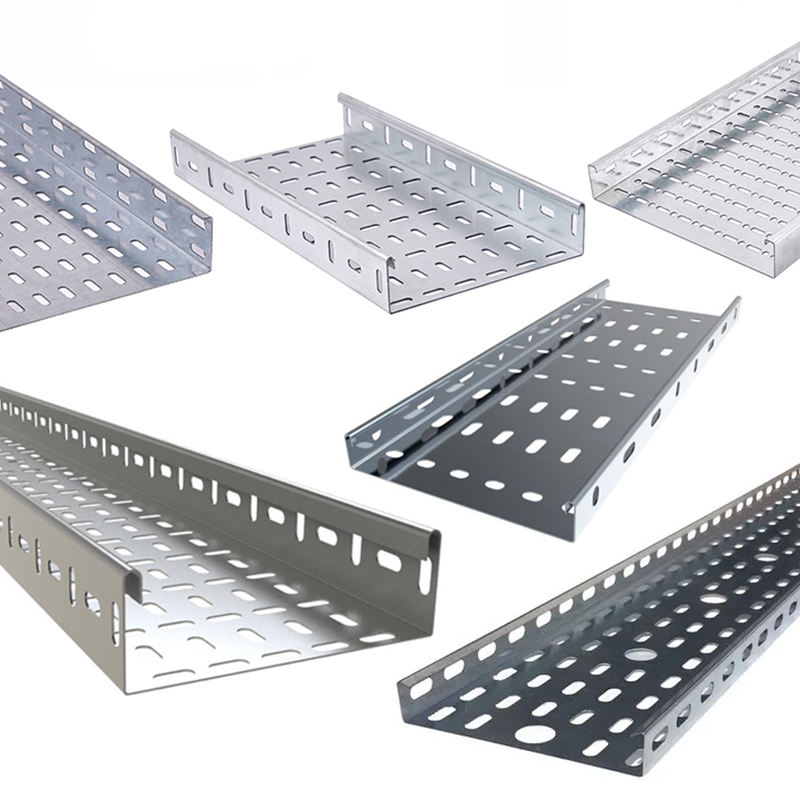

3. Perforated Cable Tray
Definition
A Perforated Cable Tray is a metallic tray with a flat base and perforations (holes or slots) along its bottom and sides. It combines structural stability with ventilation, making it a versatile choice for medium-duty cable management.
Features
- Typically made of hot-dip galvanized steel, aluminum, or stainless steel.
- Perforated design allows airflow and water drainage, preventing overheating and corrosion.
- Provides support and protection for medium-sized power or control cables.
- Compatible with standard fittings for flexible layout and routing.
Applications
- Factories, workshops, and commercial centers requiring organized cable management.
- Indoor electrical wiring where medium mechanical strength is sufficient.
- Aesthetic installations in commercial and retail environments.
Advantages
- Offers ventilation and cooling benefits, reducing heat buildup.
- Lightweight and easy to cut and install.
- Cost-effective solution for medium-load installations.
- The perforated base facilitates dust removal and easy cable tying.

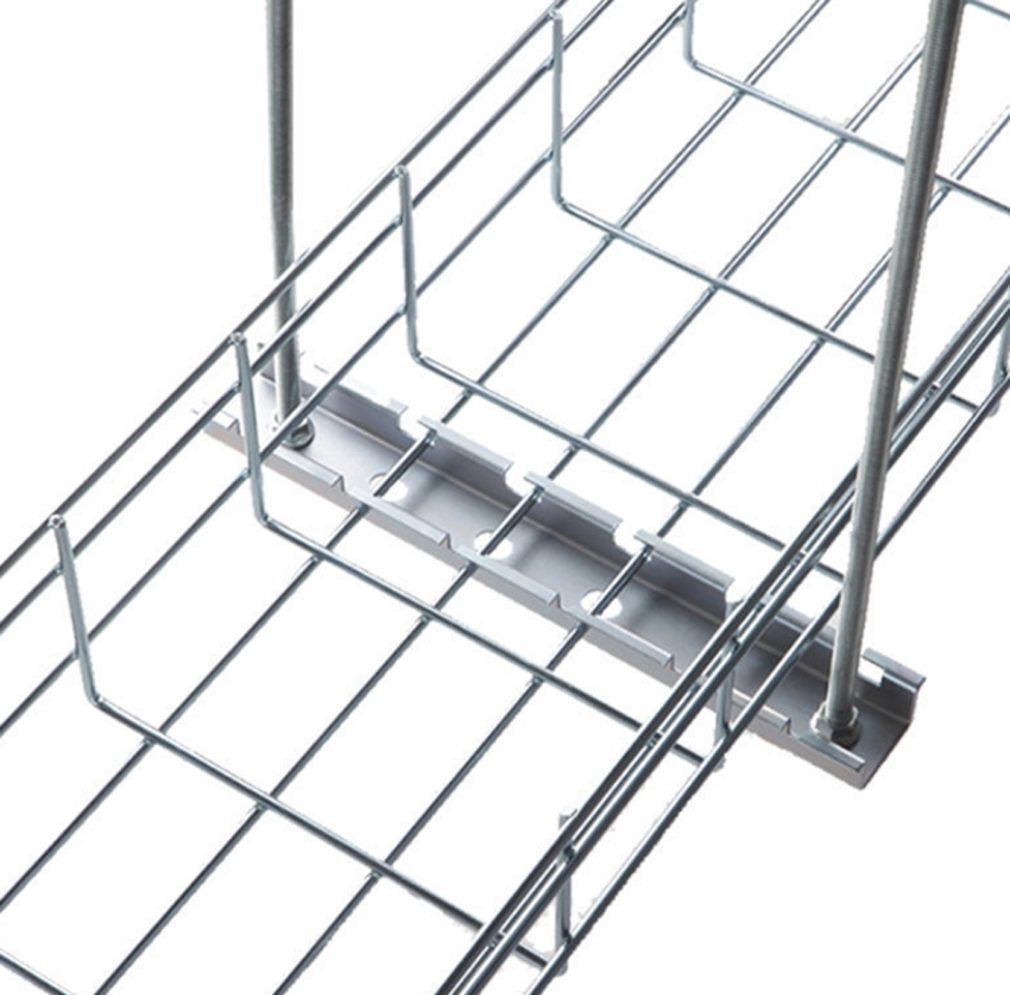

4. Wire Mesh Cable Tray
Definition
A Wire Mesh Cable Tray, also known as a Basket Tray, is composed of interconnected steel wires welded into a mesh grid. It is lightweight, flexible, and ideal for modern data and communication networks.
Features
- Made of electro-galvanized or stainless steel wires for strength and corrosion resistance.
- Open mesh structure ensures excellent ventilation and visibility.
- Can be cut, bent, or shaped on-site without special tools for quick installation.
- Best suited for low-voltage, data, and communication cables.
Applications
- Data centers, IT rooms, and telecommunication facilities.
- Commercial offices requiring flexible cable pathways.
- Ceiling-mounted or underfloor installations where weight and space are limited.
Advantages
- Lightweight and economical, reducing installation time and labor.
- Provides excellent ventilation, preventing overheating.
- Highly adaptable, ideal for complex cable routing.
- Easy to modify or expand cable systems without dismantling existing structures.
- Offers a modern and tidy appearance, suitable for visible areas.

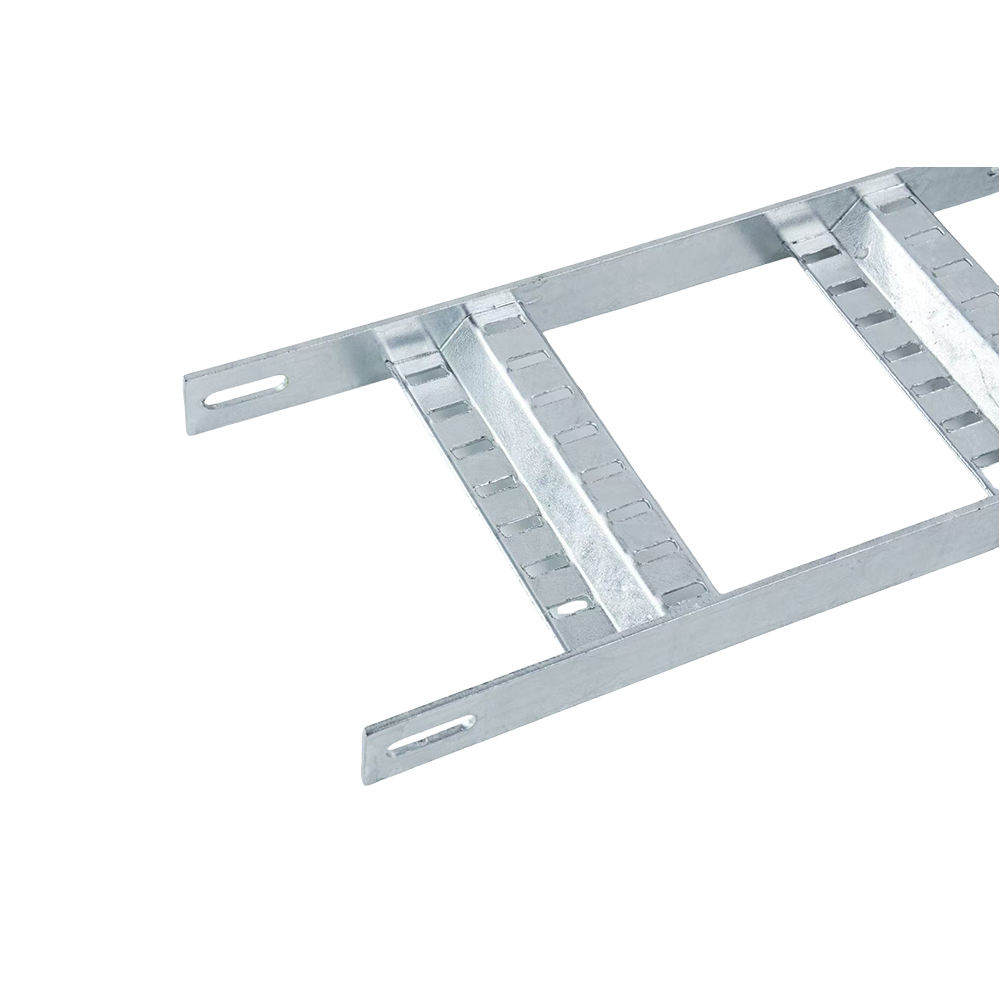

5. Marine Cable Tray
Definition
A Marine Cable Tray is a specialized system designed for marine and offshore environments, where exposure to saltwater, humidity, and vibration demands superior corrosion resistance and reliability.
Features
- Made from marine-grade stainless steel (SS316L) or aluminum alloy.
- Engineered to withstand salt spray, vibration, and high humidity.
- Available in ladder, perforated, or solid-bottom styles for different marine needs.
- Certified under marine standards such as DNV, ABS, or Lloyd’s Register.
Applications
- Ships, offshore platforms, and port facilities.
- Coastal power plants and marine engineering projects.
- Environments with chemical exposure or high corrosion risk.
Advantages
- Exceptional corrosion resistance in harsh marine conditions.
- Fully compliant with international marine safety standards.
- Long service life with minimal maintenance requirements.
- Ensures mechanical protection and electrical continuity for marine cables.
Comparison Summary
| Type | Structure | Load Capacity | Ventilation | Typical Use |
|---|---|---|---|---|
| Cable Ladder | Two side rails with rungs | Heavy | Excellent | Industrial, Power Plants |
| Cable Trunking | Fully enclosed box | Medium | Poor | Buildings, Offices |
| Perforated Cable Tray | Flat base with holes | Medium | Good | Factories, Commercial |
| Wire Mesh Cable Tray | Wire grid | Light | Excellent | Data Centers, Offices |
| Marine Cable Tray | Ladder or perforated, corrosion-resistant | Medium–Heavy | Good | Ships, Offshore Platforms |
Conclusion
Selecting the right cable tray type depends on several factors—cable size, load capacity, installation environment, and safety requirements.
- Cable Ladder Trays are best for heavy-duty industrial systems.
- Cable Trunking provides maximum protection and clean aesthetics.
- Perforated Cable Trays balance protection and ventilation for medium loads.
- Wire Mesh Trays are perfect for lightweight and flexible data cabling.
- Marine Cable Trays are engineered for extreme marine environments with unmatched durability.
Ultimately, a well-chosen cable tray system ensures safety, performance, and long-term reliability, forming the backbone of any modern electrical infrastructure.
